DMX vs. XLR

DMX and XLR cables use the same 3-pin or 5-pin connectors, but they are not the same. DMX cables are engineered for digital lighting data to prevent flickering, while XLR cables are designed for analog audio. Using audio cables for DMX can cause erratic lighting behavior, whereas using DMX cables for audio may introduce noise.

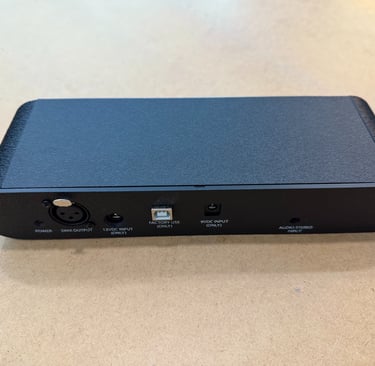

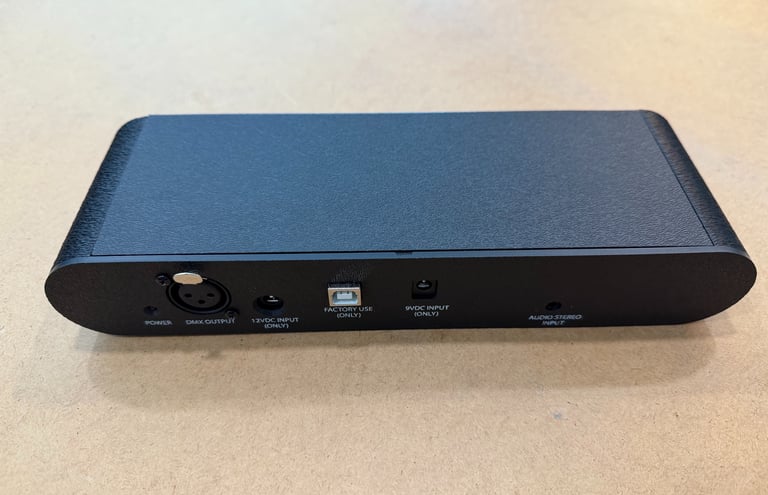

DMX Cables (Lighting)

  • Purpose: Transmits digital data (DMX512 protocol) to lighting fixtures.

  • Impedance:

    impedance designed for high-frequency data.

  • Structure: Often 5-pin (though 3-pin exists) with shielding designed for digital signals.

  • Performance: Prevents data reflection and flickering.

XLR Cables (Audio)

  • Purpose: Transmits analog audio signals (microphones, mixers).

  • Impedance: Low impedance (typically 45-75 ohms).

  • Structure: Most commonly 3-pin.

  • Performance: Designed to reduce noise in audio signals, often more rugged.

Key Differences and Compatibility

  • Interchangeability: While they physically fit, they should not be swapped. Using XLR for DMX can cause signal loss, flickering, or sluggish responses in lighting scenes.

  • Long Distances: Using improper cables becomes more problematic with longer cable runs and more fixtures.

  • Termination: DMX setups often require a 120-ohm resistor at the end of the chain to prevent signal reflection, which is not used in audio.

    While it may work in a pinch, using the wrong cable is not recommended for professional, stable setups.
